VD-378x36L12Wx247,65D54

Stock Code: CP5772-2085CG8

Description
Specifications
Downloads

Manufacturer	AP Racing
Outside Diameter 'A' (mm)	378.0
Thickness 'B' (mm)	36.0
Mounting PCD 'M' (mm)	247.6
Mounting Hole Number	12
Fixing Type	Floating
Eye Diameter 'C'	266.8
Inside Flange Diameter 'D' (mm)	221.0
Mounting Flange Thickness 'H' (mm)	7.5
Maximum Pad Depth (mm)	D54
Number of Vanes	72
Air Gap (mm)	20.0
Weight (Kg)	8.7

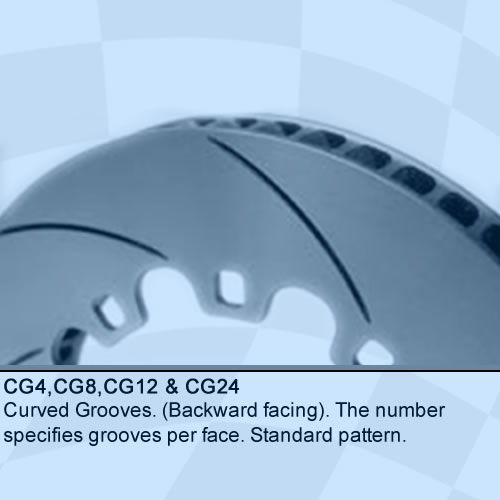

Face Type	CG8
Hand	Left
Notes	Bobbin CP7016-139MS
