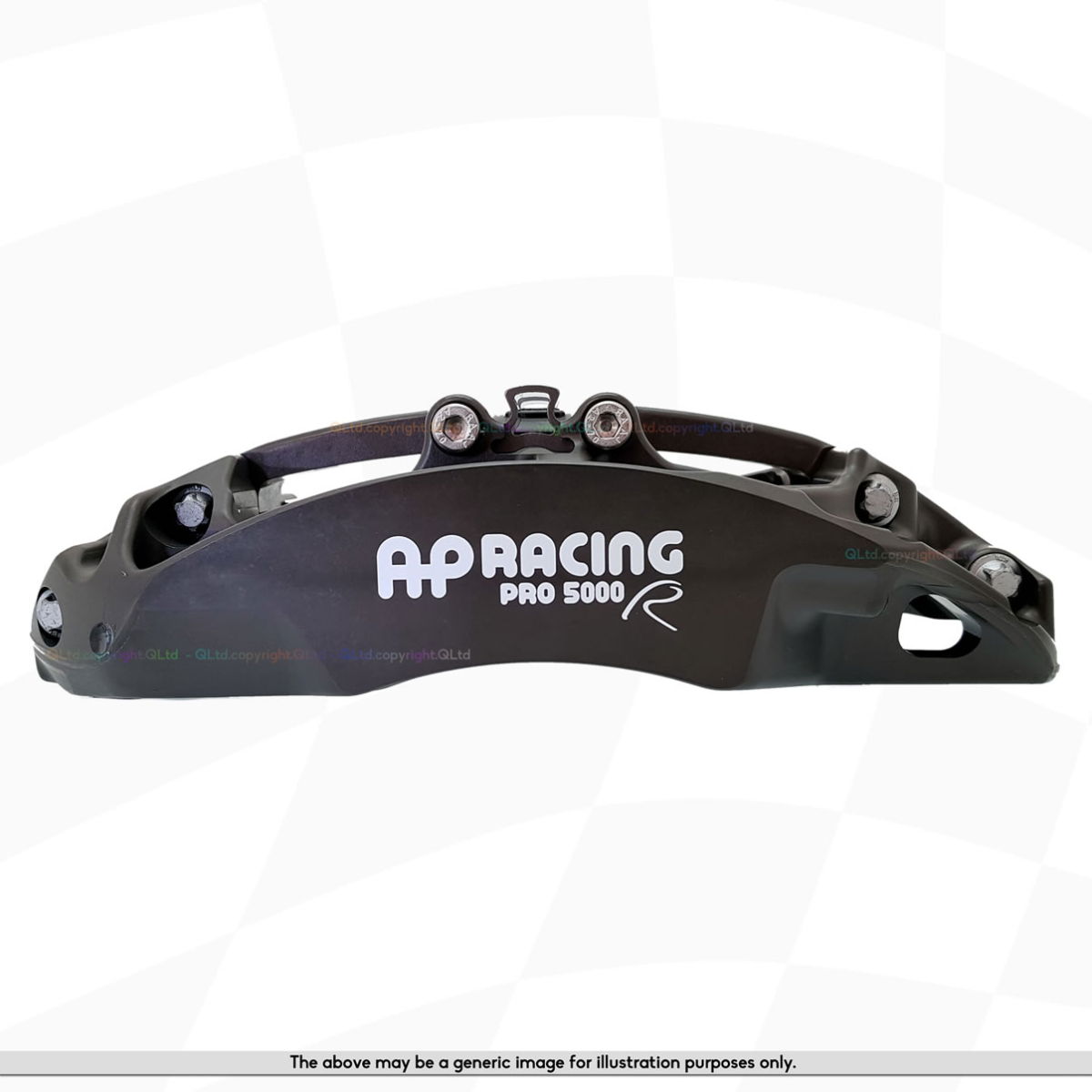

CP9665-side

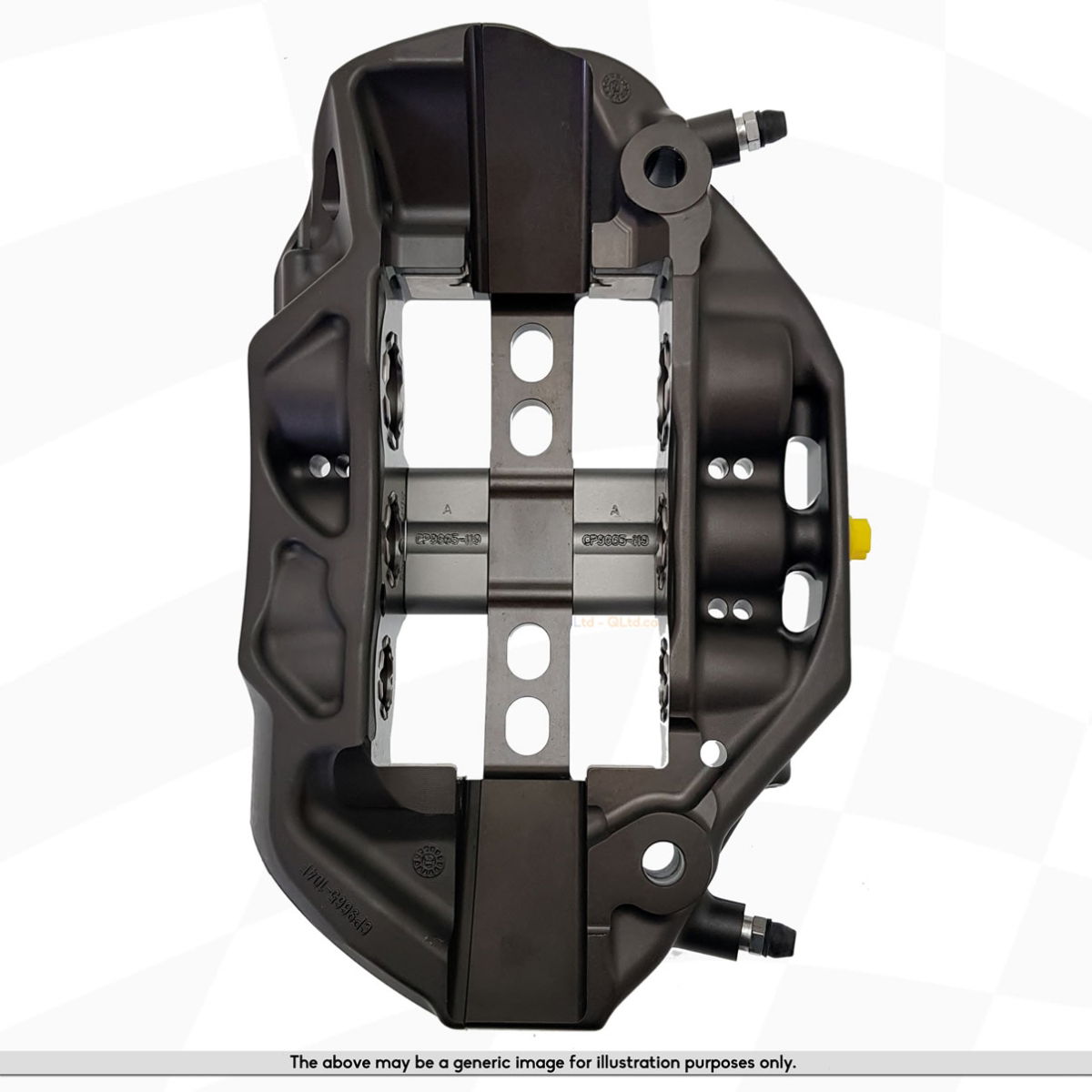

CP9665-bottom

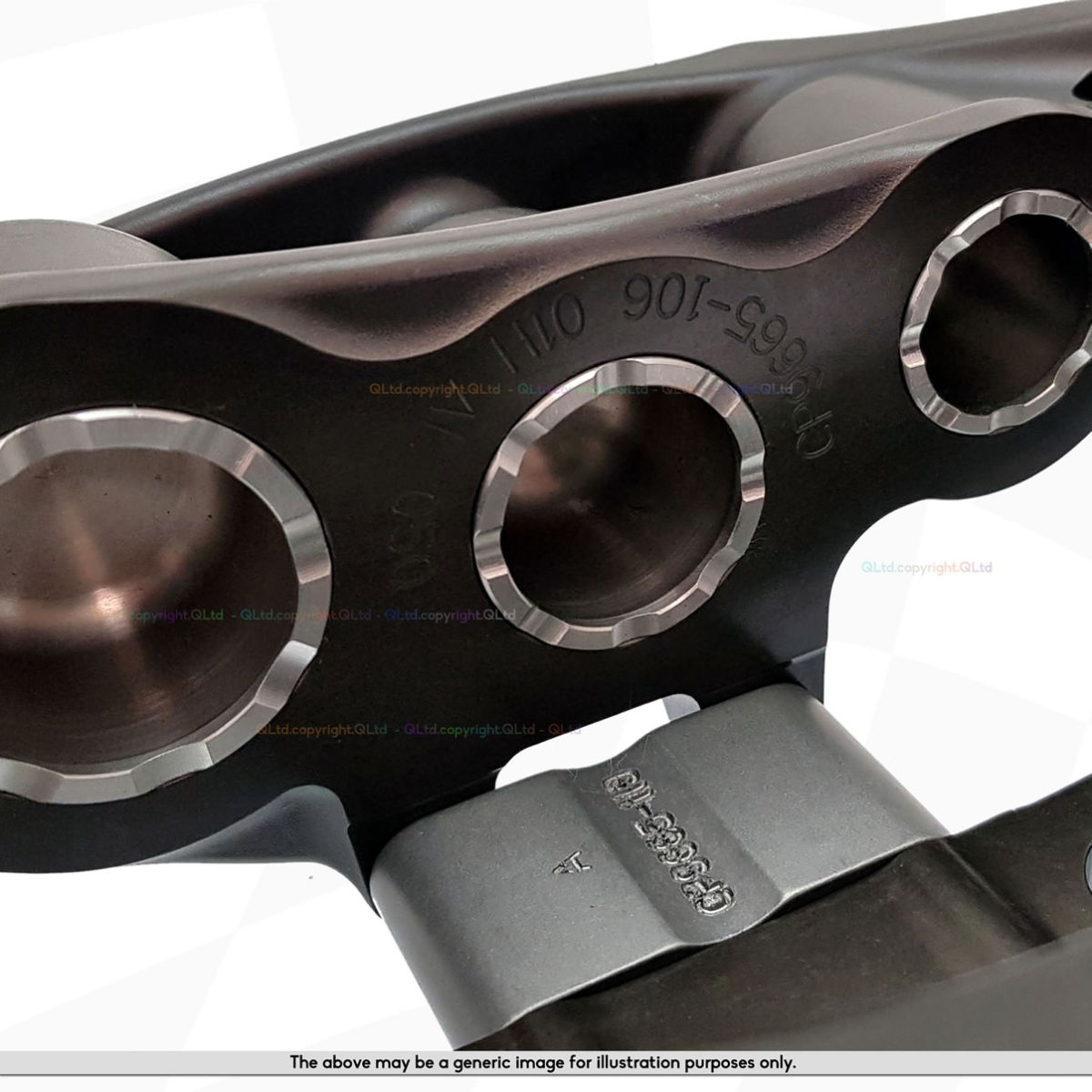

CP9665-pistons

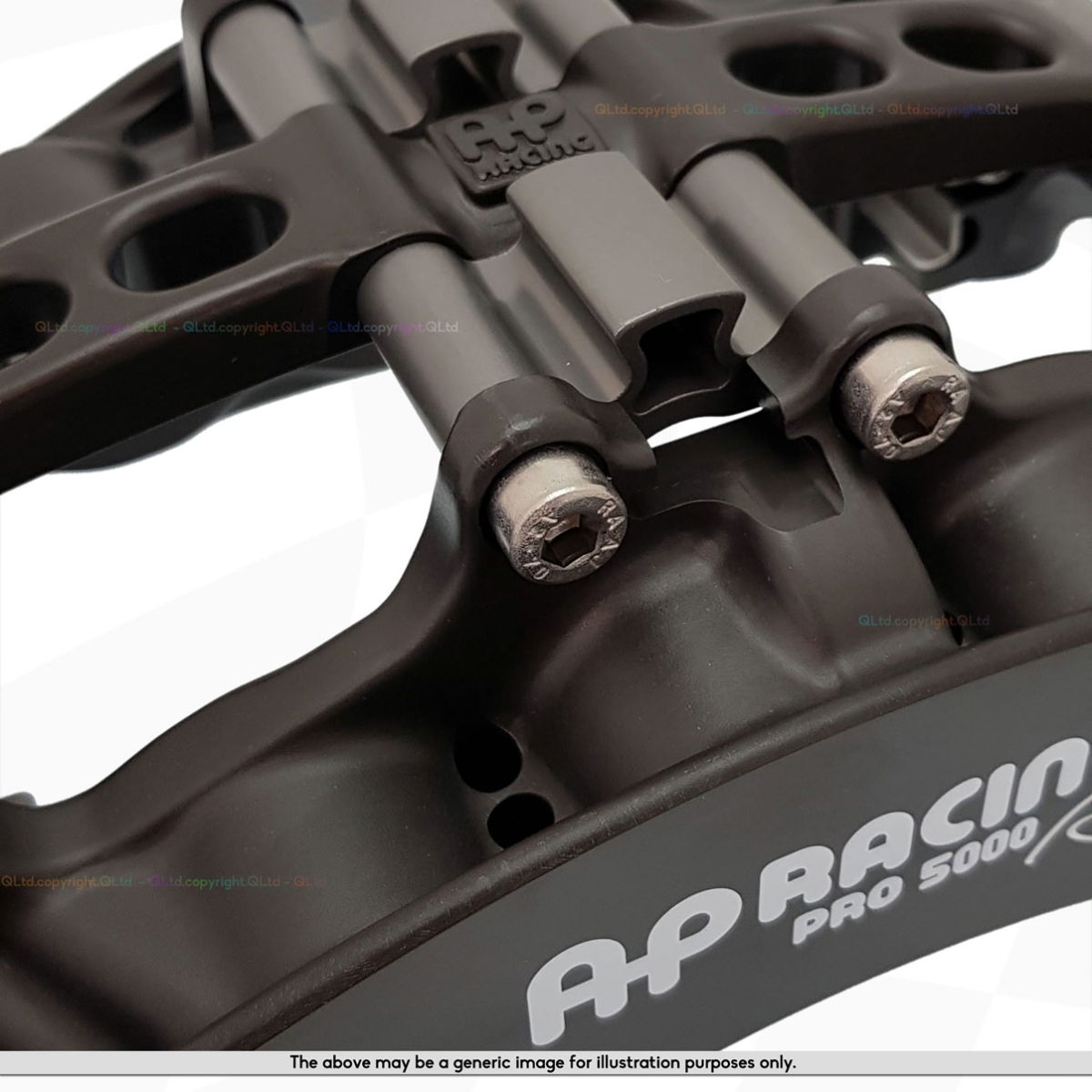

CP9665-pad-retainers
CP9665-side
CP9665-bottom
CP9665-pistons
CP9665-pad-retainers

ACAL(CEJ)LHNx35.6-CP6230

Stock Code: CP9665-3S7L

Login to purchase

ACAL(CEJ)LHNx35.6-CP6230

ManufacturerAP Racing
Caliper CategoryPro 5000 R
Caliper FamilyCP9665
Number of Pistons6
Disc Diameter Min (mm)362.0
Disc Diameter Max (mm)390.0
Disc Thickness Min (mm)32.0
Disc Thickness Max (mm)36.0
HandLeft
Leading or TrailingBoth
Piston 1CP9665-114
Piston 1 Diameter (mm)27.0
Piston 2CP9665-115
Piston 2 Diameter (mm)31.8
Piston 3CP9665-116
Piston 3 Diameter (mm)38.1
Piston Area (cm2)50.1
Mounting TypeRadial
Mounting Hole Dia. (mm)12.25
Mounting Centres (mm)210.0
Mounting Offset (mm)42.0
Hydraulic ThreadM10x1.0
PL Dimension (mm)63.5
Weight (Kg)3.1
Anti-Knockback SpringsCP6518-7LBSSL
AP Pad ShapeCP6230D54
Seal KitCP8518-CEJ
Bleed Screw KitCP3880-1
Pad RetainerCP9665-119
Wear PlateCP9665-112/3
Pad Retainer BoltCP3715-117ST

Related Products

CP9665-side
ACAL(CEJ)RHNx35.6-CP6230 CP9665-2S7L
KIT SIB 1.06x1.25x1.50
KIT SIB 1.06x1.25x1.50 CP8518-CEJ
BLEED SCREW KIT M10
BLEED SCREW KIT M10 CP3880-1
PISTON-1.06x33.1SST-SIB
PISTON-1.06x33.1SST-SIB CP9665-114
PISTON-1.25x33.1SST-SIB
PISTON-1.25x33.1SST-SIB CP9665-115
PISTON-1.50x33.1SST-SIB
PISTON-1.50x33.1SST-SIB CP9665-116
CP9665-wear-plate
WEARPLATER22.5x1.2 CP9665-112
CP9665-wear-plate
WEARPLATEL22.5x1.2 CP9665-113
CP9665-pad-retainers-close
RETAINERPAD-M0829.50ALU CP9665-119
CLIP PAD RETAINING
CLIP PAD RETAINING CP9665-118
HINGE RETAINING
HINGE RETAINING CP6268-110
BOLT-M08x110 CAP
BOLT-M08x110 CAP CP3715-117ST
knock-back-springsx6
KIT-SPR-AKB7lb-SSL-QTY6 CP6518-7LBSSL
